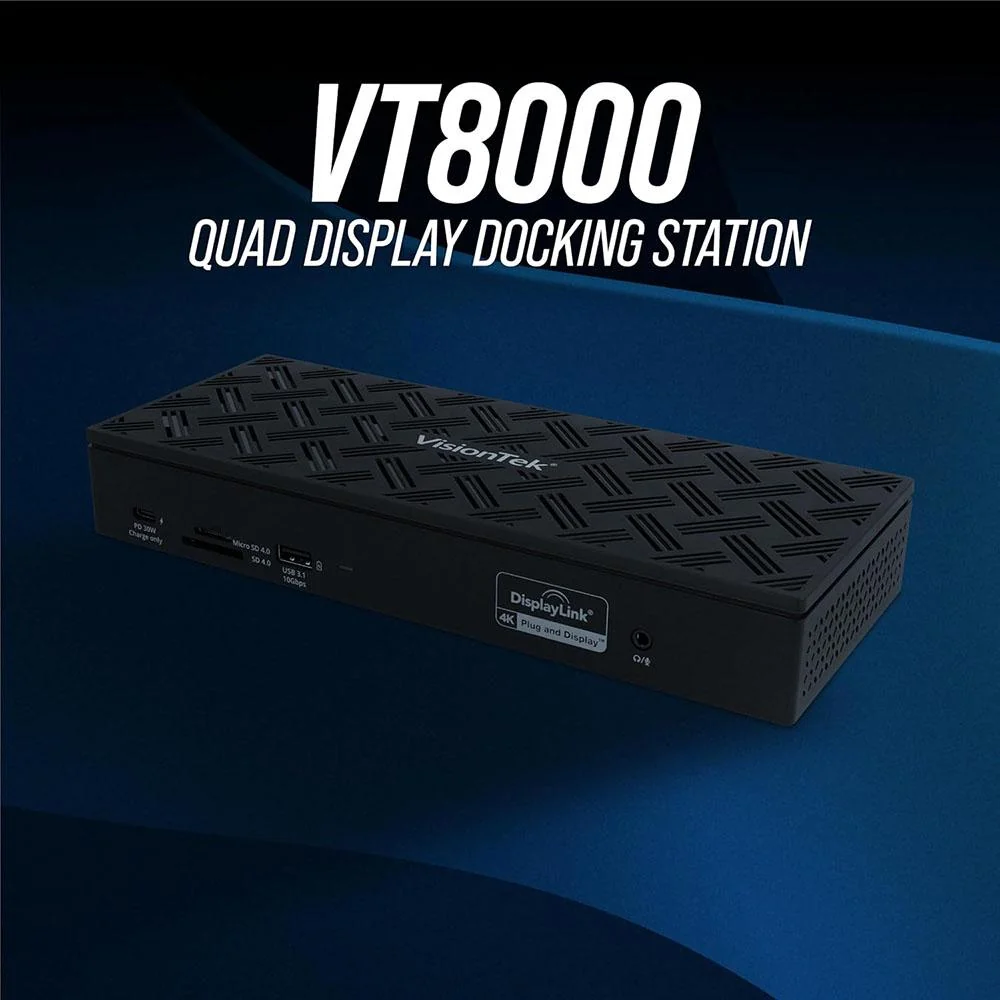

Visiontek VT8000 Quad Display 4k USB 3.0 / USB-C Docking Station - 901492

The VisionTek VT8000 Quad Display 4K Docking Station with 100W Power Delivery allows you to easily connect your Windows; Mac or Chrome laptop to four-4K displays and up to 8 accessories and peripherals through a single USB connection.

With a single-cable; take advantage of up to four additional 4K displays; 3 USB-A devices; a USB-C device including full sized keyboard and mouse; external storage; and mobile device connections for charging and data transfer. Supports up to 100W Power Delivery.

Desktop Expansion

Output video utilizing the power of DisplayLink technology. Connect up to 4 x 4K displays via HDMI or DisplayPort. Connect up to 2 x 5K via DisplayPort.

Universal Compatibility

Works in PC and Mac environments Windows 11; 10; 8.1; 7; macOS 10.10 and later; ChromeOS.

Single Cable Connection

Compatible with USB-C or USB-A host systems. Extend 4 monitors; transfer files; and power your laptop all from a single port. USB-A host connection does not support power delivery.

From One Connection Transform Your Workspace

The VT8000 has the power and capability to transform your laptop into a home office workstation. With one USB-C connection you can connect and extend up to 4 x 4K displays; USB accessories; quick charge your mobile phone and more. Eliminate the need for adapters and provide a clean; powerful hub that makes using your computer and accessories an absolute breeze.

Powered by DisplayLink USB Graphics

DisplayLink graphics transport technology provides visual expansion to a standard workstation.  DisplayLink docks make it easy to extend from a computer to any display; enabling laptops and tablets to be connected to multiple external monitors; audio transfer; Ethernet; and more through a simple USB port.  Any laptop with a USB-A or USB-C port (DisplayLink requires USB 3.0 or higher) opens the door to both portability and at-home power for professional or personal work with DisplayLink. In other words; DisplayLink docks are a must have for hybrid work environments.

Product Features:

• Quad 4K Display Compatibility - Connects four 4K displays simultaneously through HDMI or DP; ideal for expansive visual setups
• Diverse Connection Options - Equipped with 4x HDMI; 4x DP; 4x USB-A; 1x USB-C PD port; audio/mic; SD/Micro SD card readers; Ethernet; and a Kensington Lock

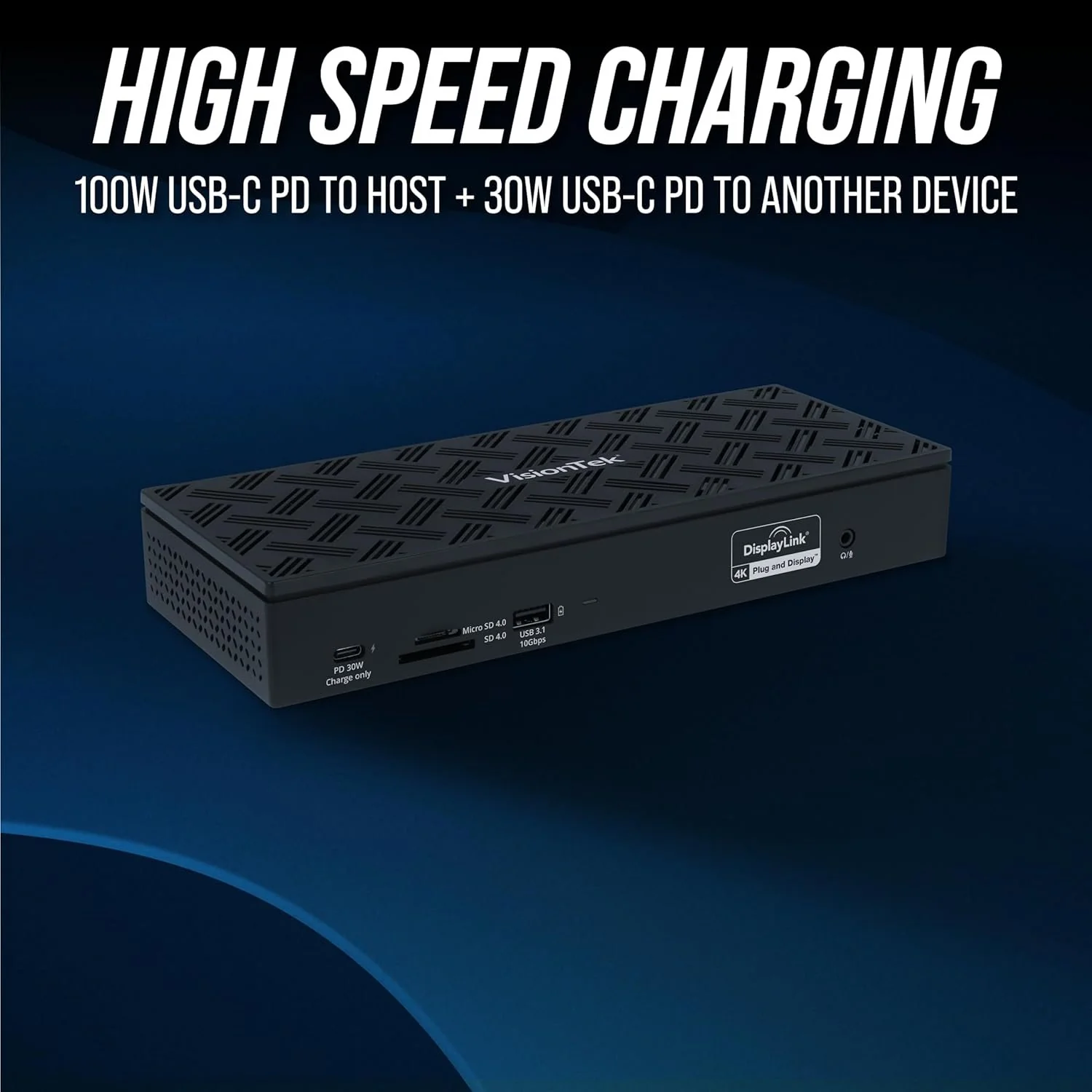

• Robust 100W Usb-C Power - Delivers significant power to your laptop; ensuring it remains charged and ready for use (note: power supply included)
• Universal Device Support - Compatible with USB 3.0; Type-C; and fully compatible with M1 Mac; accommodating a wide range of devices
• Advanced Enterprise Features - Includes Wake on LAN; MAC Address Pass-Through; PXE Boot; and 2.5 Gigabit Ethernet port for professional needs

Specifications:

Technical Specifications

• Dock Connection:
• USB-C
• USB 3.0
• Display Technology: DisplayLink
• Power Adapter: 180W - DC 20V/9A
• Power Delivery: Up to 100W
• Displays Supported: 4
• Maximum Resolution Supported: 2 x 5K @ 60Hz4 x 4K @ 60Hz
• Video Interfaces:
• (4) DP 1.2
• (4) HDMI 2.0

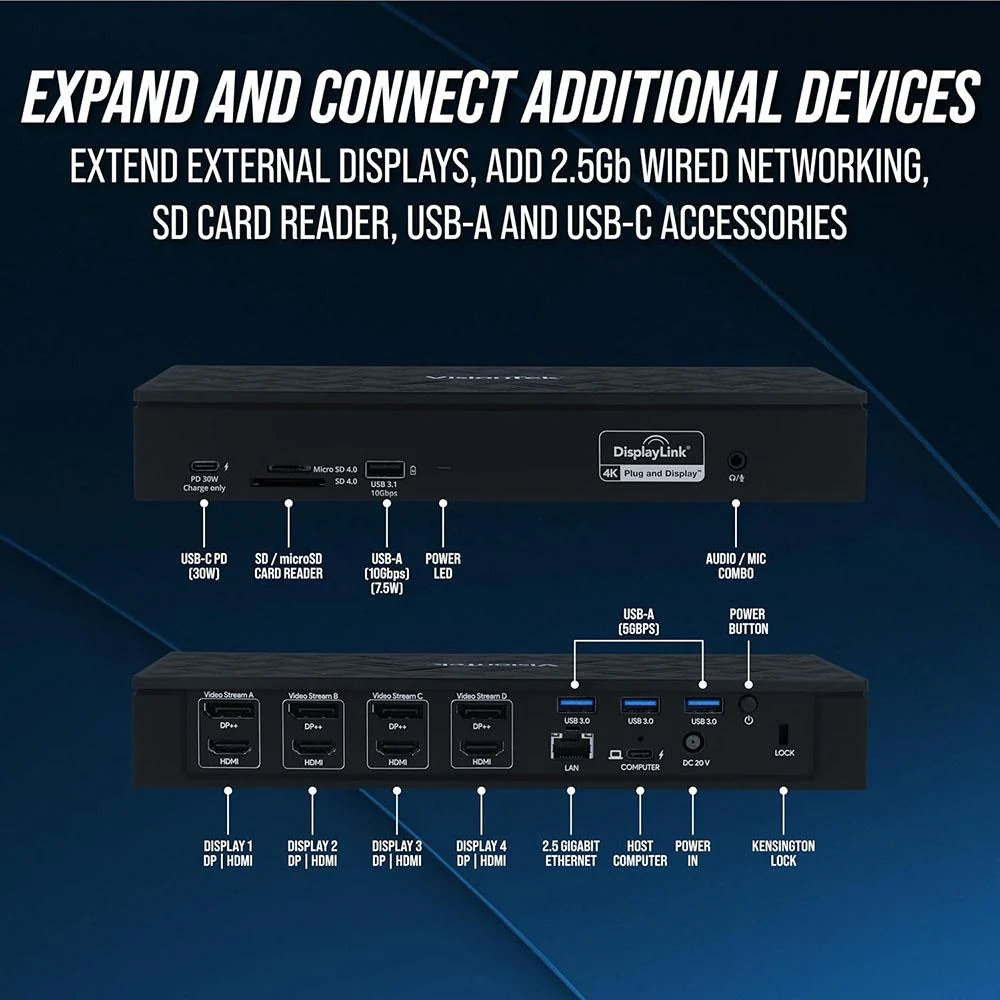

• Ports:

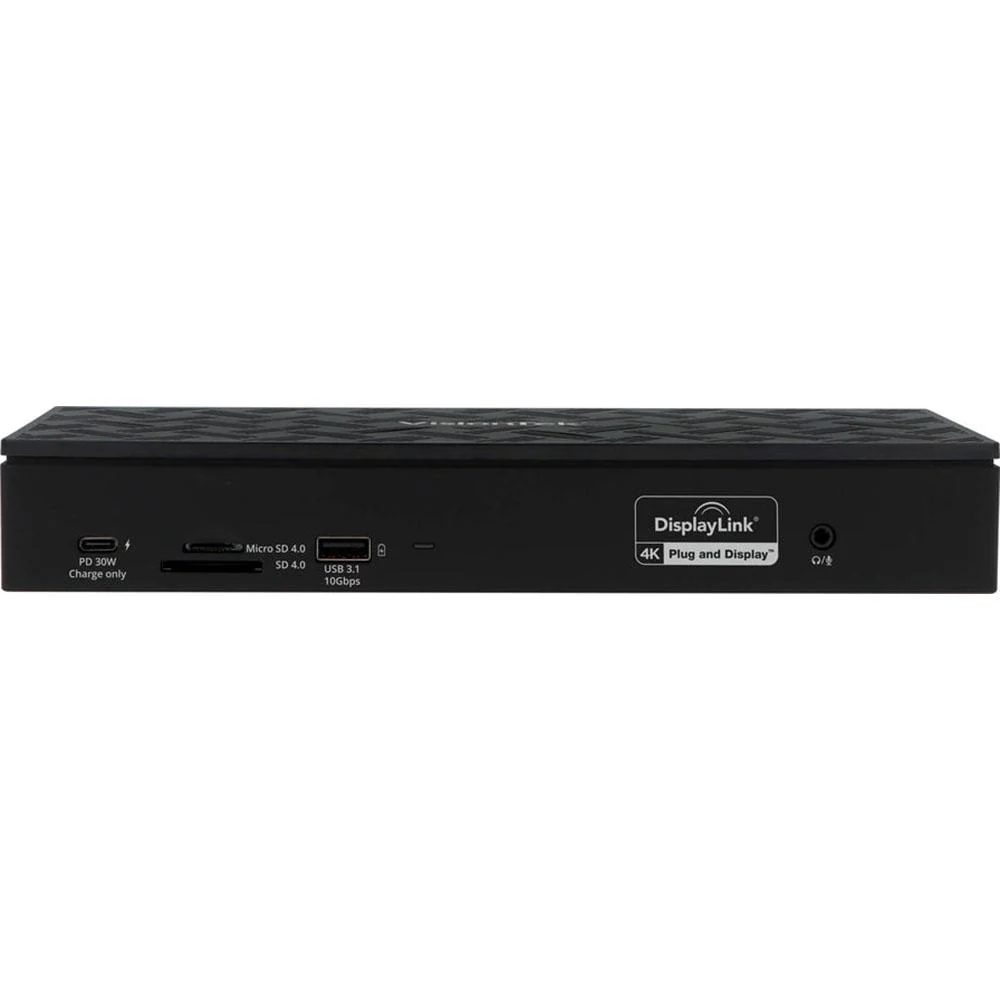

• Front Ports:
• 1 x USB-C Power Delivery Port (30W)
• 1 x Micro SD Card Reader
• 1 x SD Card Reader
• 1 x USB-A 3.1 Gen2 (10Gbps)
• 1 x 3.5mm Audio/Microphone Combo Jack

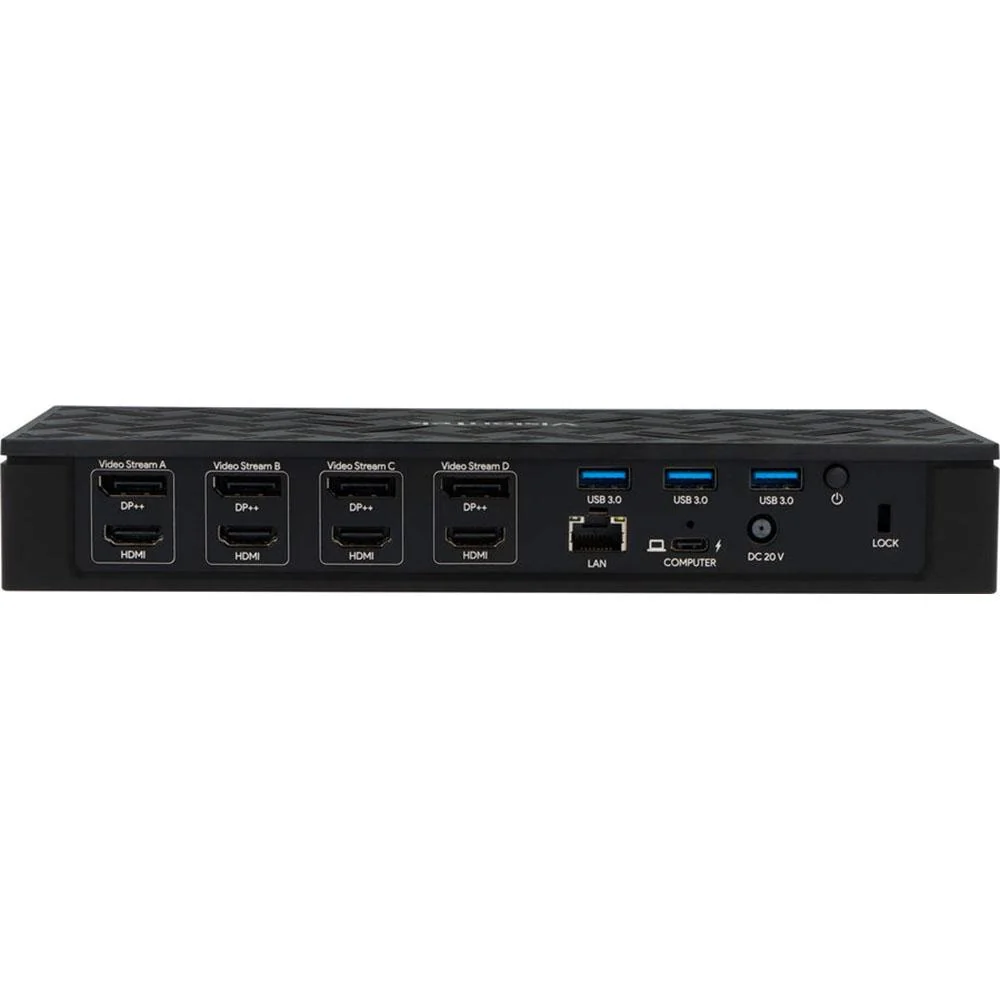

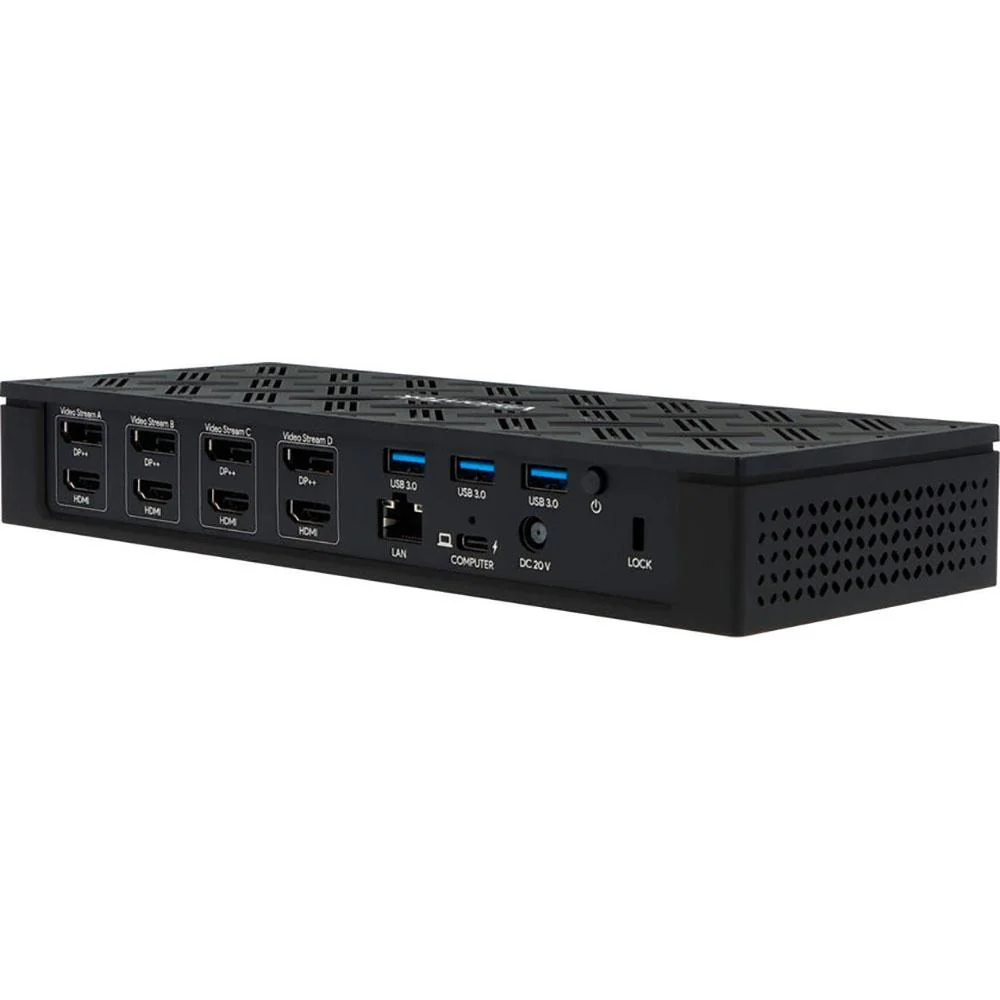

• Back Ports:
• DC 20V/9A Power Supply Port
• 4 x HDMI Ports (DisplayLink)
• 4 x DisplayPort Ports (DisplayLink)
• 3 x USB-A 3.0 Ports
• 2.5 Gigabit Ethernet Port
• USB-C to System
• Power Button
• Kensington Security Lock Slot
• Cable Length: 1.0m - USB-C

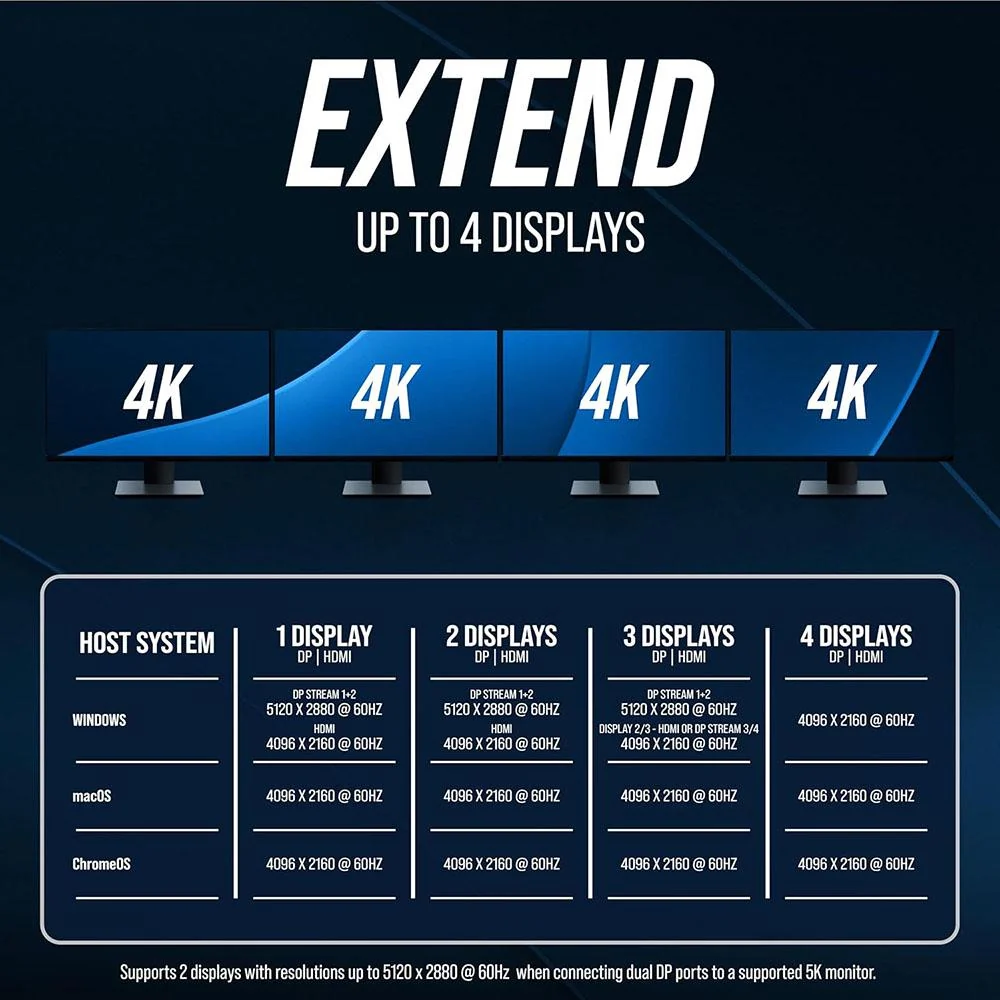

• Display Outputs Supported:
• Single Display Support:
• DisplayPort: Resolutions up to 4096 x 2160 @ 60Hz (4K)
• HDMI: Resolutions up to 4096 x 2160 @ 60Hz (4K)
• Dual Display Support:
• DisplayPort: Resolutions up to 4096 x 2160 @ 60Hz (4K)
• HDMI: Resolutions up to 4096 x 2160 @ 60Hz (4K)
• Multi Display Support:
• Stream A: DisplayPort or HDMI: Resolutions up to 4096 x 2160 @ 60Hz (4K)
• Stream B: DisplayPort or HDMI: Resolutions up to 4096 x 2160 @ 60Hz (4K)
• Stream C: DisplayPort or HDMI: Resolutions up to 4096 x 2160 @ 60Hz (4K)
• Stream D: DisplayPort or HDMI: Resolutions up to 4096 x 2160 @ 60Hz (4K)

System Requirements

• Operating Systems:
• Windows 10
• Window 8.1
• Windows 7
• macOS 10.x and later
• Chrome

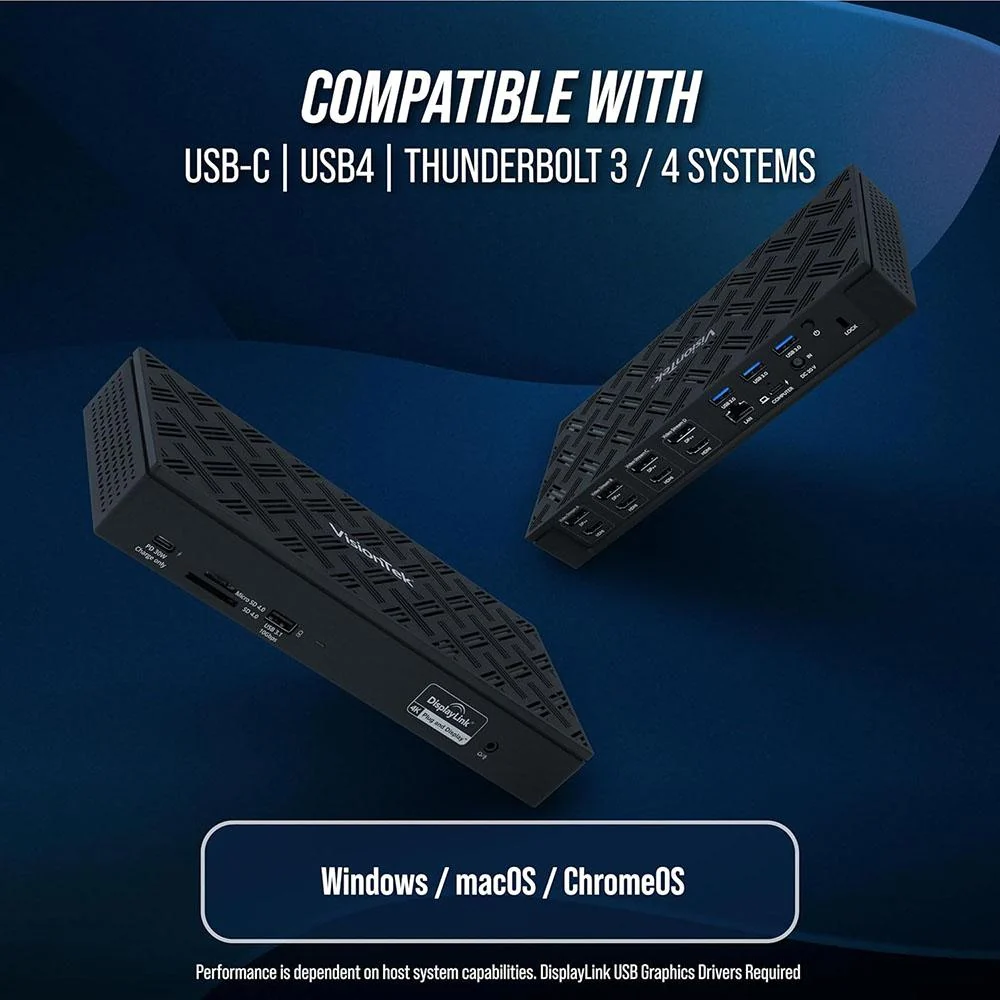

• Dock to System Connection:
• USB 3.0 Type A
• USB-C 3.1
• Thunderbolt 3

Environmental

• Operating Temperature: 0 to 40 degree C (32 to 104 degree F)
• Storage Temperature: -10 to 70 degree C (-14 to 158 degree F)
• Relative Humidity: 10% to 90% non-condensing - Operational / Storage

Dimensions & Weights

• Product Information:
• Color: Black ABS
• Length: 9.64" (245mm)
• Depth: 3.86" (98mm)
• Height: 1.50" (38mm)
• Weight: 1lbs 4.6oz (584g)

Warranty

• Warranty: 3 Year Limited
