Visiontek VT7000 Triple Display 4K USB 3.0 / USB-C Docking Station - 901468

The VisionTek VT7000 Triple Display 4K Docking Station with 100W Power Delivery allows you to easily connect your Windows; Mac or Chrome laptop up to three 4K displays and up to 8 accessories and peripherals through a single USB connection.

This high-quality dock is a single-cable solution that enables you to take full advantage of up to three additional 4K external monitors; 3 USB-A devices; 2 USB-C devices (including full sized keyboard and mouse); external storage; mobile device charging; and data transfer ports. Supports up to 100W Power Delivery.

Desktop Expansion

Output video utilizing the power of DisplayLink technology in combination with the capabilities of USB-C DP Alt Mode Connect up to 3 x 4K displays via HDMI or DisplayPort.

Universal Compatibility

Works in PC and Mac environments Windows 11; 10; 8.1; 7; macOS 10.x and later.

Single Cable Connection

Compatible with legacy systems via USB-A 3.0 connection (2 Displays). Compatible with USB-C host systems with DP Alt Mode (3 Displays). Extend 3 monitors; transfer files; and power your laptop all from a single port.

Turn your Laptop into a Workstation

The VT7000 opens the productivity door for the working professional and at-home creator. Featuring an 11-in-1 port system for extending your screen space and offering data transfer; charging; and connectivity for your core set of everyday devices. Whether your work calls for file transfer to storage; content development; wired devices with clean connections and strong audio; or simply more screen space; the VT7000 is right for you.

Expanded Connectivity

From wired networking to a host of USB-A and USB-C accessories; the VT7000 has it all. Connect to 3 individual extended 4K displays at 60Hz. Fully compatible with Windows and macOS (Intel/M1/M2); this dock provides the power and flexibility designed to elevate your laptop functionality from convenient and portable to confident and versatile.

Providing 100W power delivery and ports for up to 5 USB peripherals and accessories; a single USB connection makes connecting and charging your devices as simple as possible. Connect your wired keyboard and mouse; ethernet cable; headset and storage devices; all without a second thought.

DisplayLink and DP Alt Mode

DisplayLink technology makes it easy to extend from a computer to any display; enabling laptops and tablets to be connected to multiple external monitors; audio transfer; Ethernet; and more through a simple USB port. With simple installation of DisplayLink drivers; the first two additional displays are accessible through the VT7000's DisplayPort and HDMI ports. Using USB-C DP Alt Mode; an additional external monitor up to 4K@ 60Hz can be extended.

Product Features:

• Triple 4K Display Support - Connects up to three 4K displays to a Windows; Mac; or Chrome laptop; expanding visual workspace
• Multiple Ports & Connectivity - Offers a range of ports including USB-A; USB-C; HDMI; DisplayPort; audio/mic; and Ethernet for versatile peripheral connections

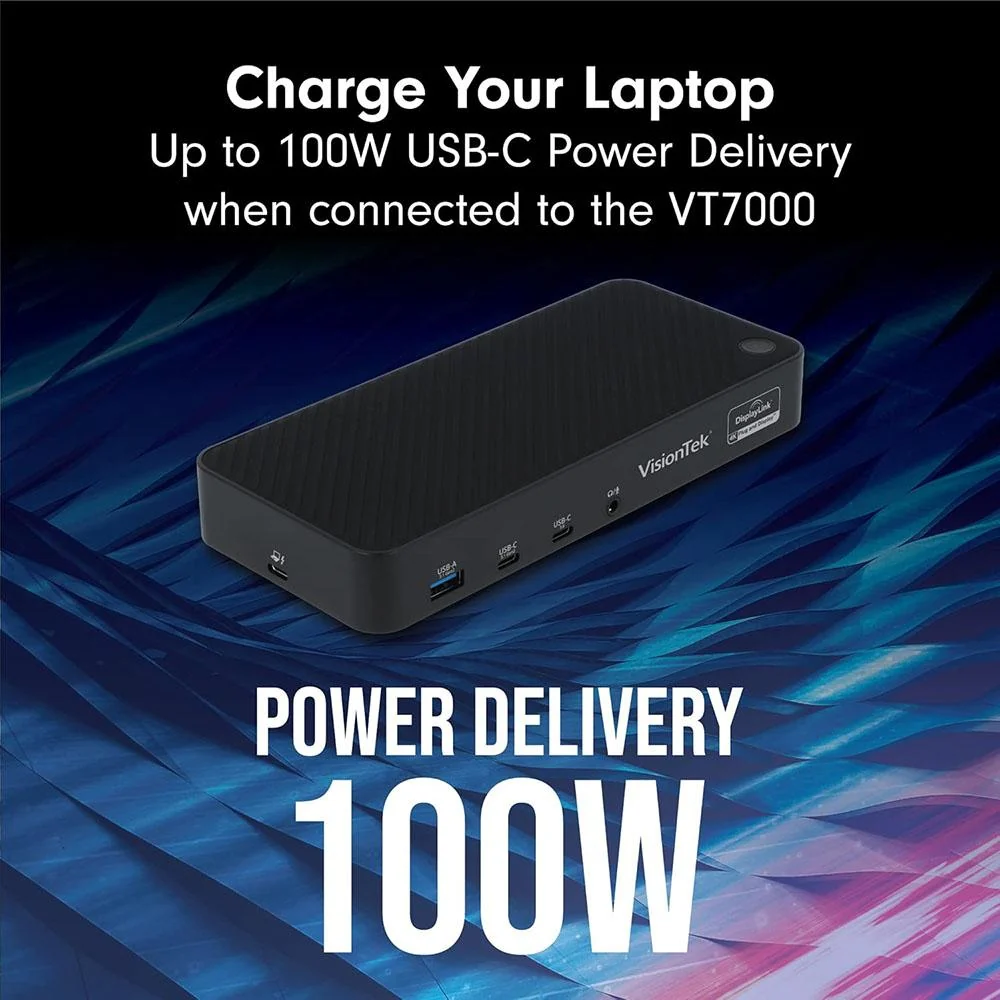

• Powerful 100W Delivery - Designed to provide up to 100W of power; ensuring your laptop stays charged and operational (note: external power supply required)
• Universal Compatibility - Compatible with USB 3.0 and Type-C devices; including M1 Macs; ensuring broad device support
• Enterprise Features - Includes advanced options like Wake on LAN; MAC Address Pass-Through; and PXE Boot for professional use

Specifications:

Technical Specifications

• Dock Connection:
• USB-C
• USB 3.0
• Display Technology:
• DisplayLink
• DP Alt Mode
• Power Adapter: 130W - DC 20V/6.5A
• Power Delivery: Up to 100W
• Displays Supported: 3
• Maximum Resolution Supported:
• 3 x 4K @ 60Hz
• Max resolution from DP Alt Mode HDMI is host system dependent
• Video Interfaces:
• (2) DP 1.2 (DisplayLink)
• (2) HDMI 2.0 (DisplayLink)
• (1) HDMI 2.0 (DP Alt Mode)
• Ports:
• Front Ports:
• 1 x USB-A 3.0 Port
• 1 x USB-C 3.0 Port
• 1 x USB-C 3.1 Gen2 Port
• 1 x 3.5mm Audio/Microphone Combo Jack
• Side Ports:
• USB-C to System

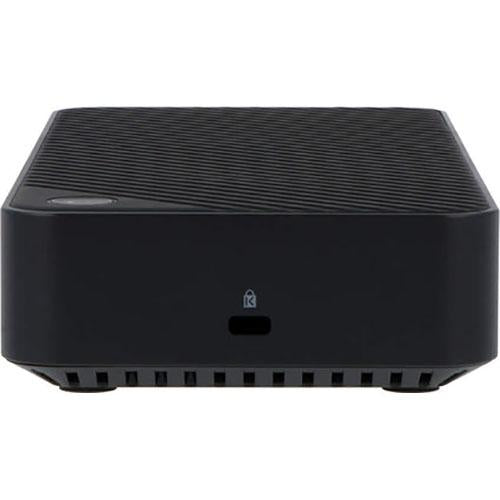

• Kensington Security Lock Slot
• Power Button (Top)
• Back Ports:
• DC 20V/6.5A Power Supply Port
• Gigabit Ethernet Port
• 2 x USB-A 3.0 Ports
• 2 x HDMI Ports (DisplayLink)
• 2 x DisplayPort Ports (DisplayLink)
• 1 x HDMI Port (DP Alt Mode)
• Cable Length:
• 1.0m - USB-C
• 1.0m - USB-C - USB-A
• Display Outputs Supported:
• Single Display Support:
• DisplayLink Ports:
• DisplayPort: Resolutions up to 4096 x 2160 @ 60Hz (4K)
• HDMI: Resolutions up to 4096 x 2160 @ 60Hz (4K)
• DP Alt Mode HDMI:
• HDMI: Resolutions up to 4096 x 2160 @ 60Hz (4K)
• Dual Display Support:
• DisplayLink Ports:
• DisplayPort + DisplayPort: Resolutions up to 4096 x 2160 @ 60Hz (4K)
• HDMI + HDMI: Resolutions up to 4096 x 2160 @ 60Hz (4K)
• DisplayPort + HDMI: Resolutions up to 4096 x 2160 @ 60Hz (4K)
• DP Alt Mode HDMI:
• HDMI: Resolutions up to 4096 x 2160 @ 60Hz (4K)
• Triple Display Support:
• DisplayLink Ports:
• DisplayPort + DisplayPort: Resolutions up to 4096 x 2160 @ 60Hz (4K)
• HDMI + HDMI: Resolutions up to 4096 x 2160 @ 60Hz (4K)
• DisplayPort + HDMI: Resolutions up to 4096 x 2160 @ 60Hz (4K)
• DP Alt Mode HDMI:
• HDMI: Resolutions up to 4096 x 2160 @ 60Hz (4K)

System Requirements

• Operating Systems:
• Windows 10
• Window 8.1
• Windows 7
• macOS 10.x and later
• Chrome
• Dock to System Connection:
• USB 3.0 Type A
• USB-C 3.1
• Thunderbolt 3

Environmental

• Operating Temperature: 0 to 40 degree C (32 to 104 degree F)
• Storage Temperature: -10 to 70 degree C (-14 to 158 degree F)
• Relative Humidity: 10% to 90% non-condensing - Operational / Storage

Dimensions & Weight

• Product Information:
• Color: Black ABS
• Length: 7.52" (191mm)
• Depth: 3.35" (85mm)
• Height: 1.22" (31mm)
• Weight: 12.4oz (351g)

Warranty

• Warranty: 3 Year Limited
